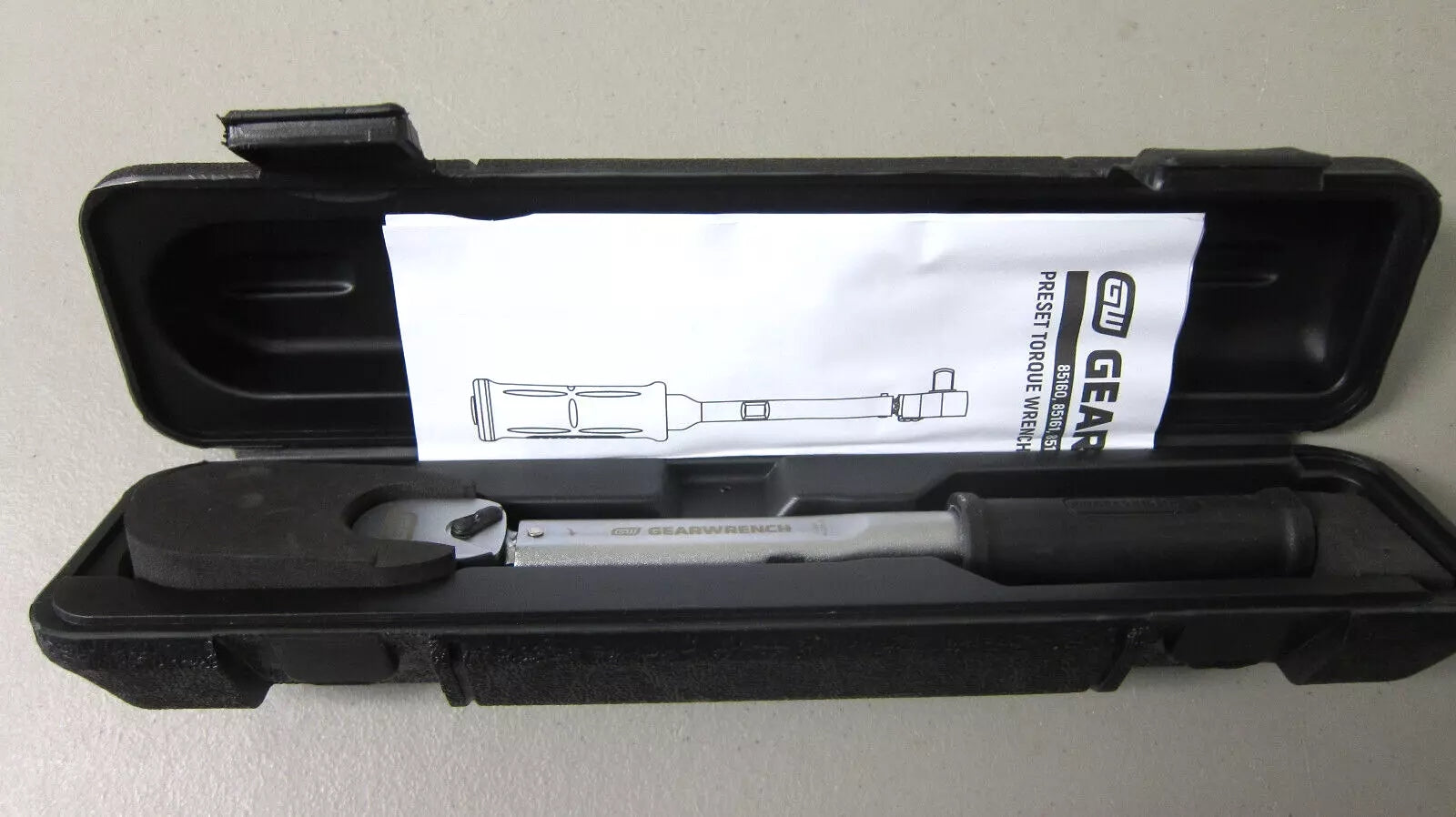

GearWrench 3/8" Drive PRESET Micrometer Torque Wrench 5-25 Nm 85161
GearWrench 3/8" Drive PRESET Micrometer Torque Wrench 5-25 Nm 85161
Regular price
$44.00 USD
Regular price
$0.00 USD
Sale price
$44.00 USD
Quantity
Couldn't load pickup availability
GearWrench 85161 3/8" Drive Preset Micrometer Torque Wrench 5-25 Nm
- FEATURES:
• 36-Tooth ratchet mechanism with a 10° swing arc allows you to turn fasteners in spaces other tools can't fit
• Torque accuracy of +/- 3% CW between 20% and 100% of wrench capability
• Thin profile, sealed, teardrop head design offers improved access and durability for highly effective application
• Pull adjustment collar feature allows you to make quick and easy torque setting changes
• Scale markings are highly visible and easy to read
• Torque settings must be preset by making an internal adjustment and using a torque tester to verify the torque value (TORQUE TESTER NOT INCLUDED)
• Meets or exceeds ISO 6789 and ASME B107.300-2010 standards and specifications
| ASME Specification | B107.300 |
| Case Color | Black |
| Drive Tang Size | 3/8 in |
| Drive Type | Square |
| Finish | Satin Chrome |
| Head Thickness | 0.91 in |
| Head Thickness Less Tang | 0.472 in |
| Head Width | 0.98 in |
| Included Storage | Blow Mold Case |
| Material | Alloy Steel |
| Max Torque (Alt Scale) | 18 ft/lb |
| Max Torque (Primary Scale) | 25 Nm |
| Min Torque (Alt Scale) | 4 ft/lb |
| Min Torque (Primary Scale) | 5 Nm |
| Tether Ready | No |
| Tooth Count | 36 |
| Torque Accuracy (20-100% of Full Range) | +/-3% Clockwise |
